Larger bandpass filters are shipped disassembled to help lower shipping costs by keeping the shipping container smaller. Costs are rising everywhere and this will help.

All resonators (cavities) are labeled to show panel orientation when re-assembling. The cavity mounting hardware is installed in the correct holes on the mounting end of each cavity. If all components are reinstalled in their correct orientation there will be no need to retune the resonators.

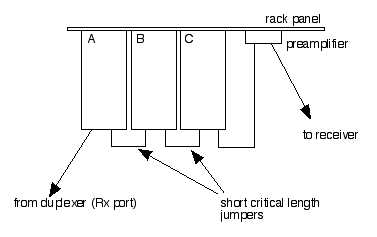

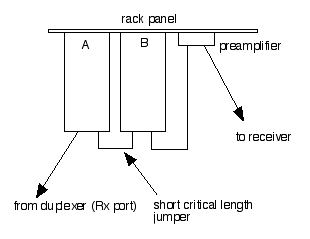

Remove mounting screws (2) from end of each filter. Match up letters for each filter and re-mount on panel. Attach cables and tighten. There is no re-alignment to be done.

Remove mounting screws (2) from end of each filter. Match up letters for each filter and re-mount on panel. Attach cables and tighten. There is no re-alignment to be done.
